Johnson Controls P170MA-1C Dual Pressure Control SPST w/ Manual Reset LS 20-100
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Compatible Brand | JOHNSON CONTROLS |
| Model | P170MA-1C |
| Brand | Johnson Controls |
| Type | Dual Pressure Control |
| Power Source | N/A |
| Voltage | N/A |
| Manufacturer Warranty | 1 Year |
| Item Weight | 2.9000 |
| Item Width | 2.700 |
| Item Length | 6.400 |

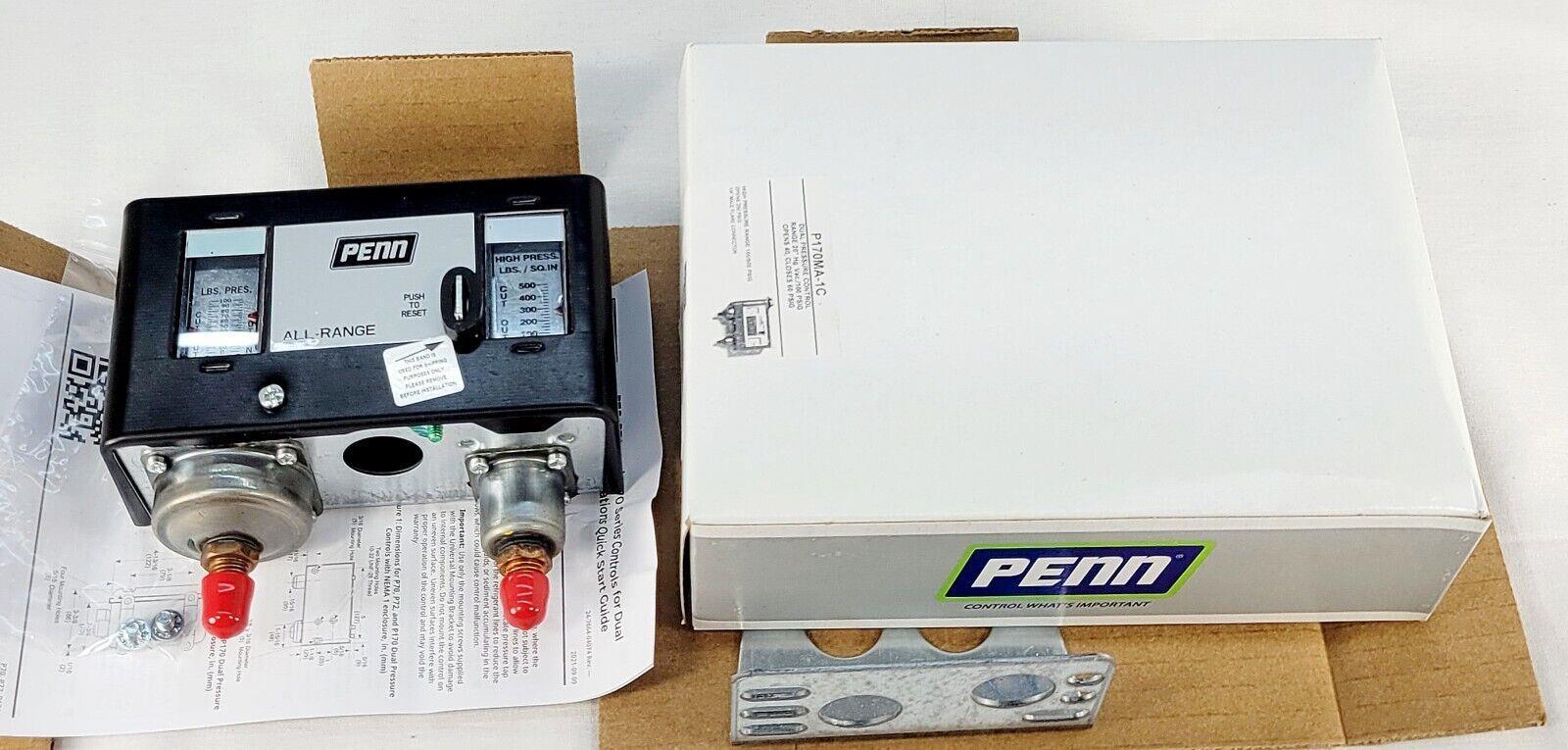

Johnson Controls P170MA-1C Dual Pressure Control SPST w/ Manual Reset LS 20-100 Click images to enlarge Description New in the Box Johnson Controls Penn P170 P170MA-1C Dual Pressure Control, 1/4 In External SAE Connection Johnson Controls Penn Dual Pressure Control, Series: P170, 1/4 in External SAE Connection, Switching Action: SPST, Low Pressure Side - 20 inHg to 100 lb/sq-in, 7 lb/sq-in Minimum - 50 lb/sq-in Maximum Adjustable Differential, High Pressure Side - 100 - 500 lb/sq-in Pressure, 24 A Full Load, 144 A Locked Rotor, 22 A Non-Inductive at 120 VAC and 2 hp, 18.7 A Full Load, 112.2 A Locked Rotor, 22 A Non-Inductive at 208 VAC and 3 hp, 17 A Full Load, 102 A Locked Rotor, 22 A Non-Inductive at 240 VAC and 3 hp, 24 A Full Load, 144 A Locked Rotor at 208/240 VAC Hermetic Compressor, 125 V-A at 120 - 600 VAC, 57.5 V-A at 120 - 300 VDC Pilot Duty Contact All steel case and cover - built to provide long-lasting, rugged protection for internal componentsManual reset lockout option provides trip free low pressure lockout that cannot be overridden or reset until pressure returns to specified levelRespond directly to system pressure changes on both high and low sides and can provide single-device control of the compressorCompatible with R-12, R-22, R-134A and R-502 refrigerants Connection Type : 1/4 in External SAEContact Rating : 24 A Full Load, 144 A Locked Rotor, 22 A Non-Inductive at 120 VAC and 2 hp, 18.7 A Full Load, 112.2 A Locked Rotor, 22 A Non-Inductive at 208 VAC and 3 hp, 17 A Full Load, 102 A Locked Rotor, 22 A Non-Inductive at 240 VAC and 3 hp, 24 A Full Load, 144 A Locked Rotor at 208/240 VAC Hermetic Compressor, 125 V-A at 120 - 600 VAC, 57.5 V-A at 120 - 300 VDC Pilot DutyPressure Rating : Low Pressure Side - 20 inHg to 100 lb/sq-in, 7 lb/sq-in Minimum - 50 lb/sq-in Maximum Adjustable Differential, High Pressure Side - 100 - 500 lb/sq-inSeries : P170Switching Action : SPST Images sell! Get Supersized Images & Free Image HostingGet Auctiva's Listing Templates on your items with a few clicks.
